Use default alert text
-
2015-06-13
23:47:37
SQL Server 192.168.1.100 Ping Timeout ... 87
seconds (20 times) ping timeout from 2015-06-13 23:46:10 to
23:47:37
-
2015-06-14
01:22:32
SQL Server Ping OK , Back to Normal Reply from
61.219.38.89: Bytes = 32 RTT = 2ms TTL = 64
Note: SQL server
is the DESCRIPTION you can setup

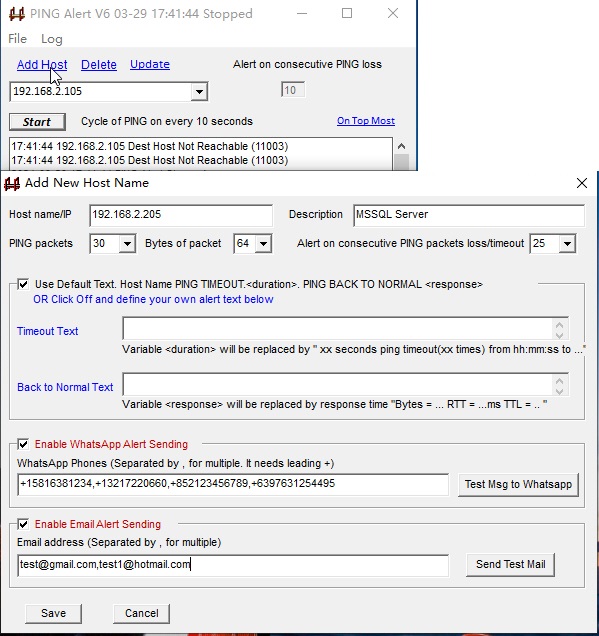

Or setup your
alert text for different servers
-
Timeout
text example setup "AP1 MYSQL 192.168.0.1 Ping Timeout.
<duration>"
and you will receive
WhatsApp
alert as below
2015-05-28 07:25:58 AP1 MYSQL
192.168.0.1 Ping Timeout. 133 seconds (30
times) ping timeout from 2015-05-28 07:23:45 to 07:25:58
-
Back text
example setup "AP1 MYSQL 192.168.0.1 Ping OK.
<response>"
and you will receive
WhatsApp
alert as below
2015-05-28 08:30:32 AP1 MYSQL
192.168.0.1 Ping OK.Reply from 192.168.0.1
Bytes = 32 RTT = 2ms TTL = 64
Variable
<duration> and <response> -
-
<duration> for "Timeout SMS" , it
will be replaced by "xx seconds (yy times) ping timeout
from yyyy-mm-dd hh:mm:ss to hh:mm:ss"
-
<response> for "Back to normal SMS"
, it will be replaced by "Reply from xx.xx.xx.xx Bytes = xx RTT
= xms TTL = xx"
Note
: <duration> for "Timeout SMS"
and <response> for "Back to normal SMS"
. It will be NOT replaced if you put the variable in wrong way
